Bottom feed vibroflot
Used for the silty clay soil condition where shearing strengthen of non-drainage less than 20Kpa Used for under-water vibro construction
Product Category：
Share to
Details
Overview
Used for the silty clay soil condition where shearing strengthen of non-drainage less than 20Kpa
Used for under-water vibro construction
Characteristics
The vibroflot barrel and the motor housing are made of high strength forged steel
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect
Unique circulating water cooled motor structure, good heat dissipation with high efficiency
Both vibroflot and motor are imported with FAG original bearing
Double-deck vibrating head design with good resistance, easy to replace
Unique bearing oil lubrication, further improve bearing life

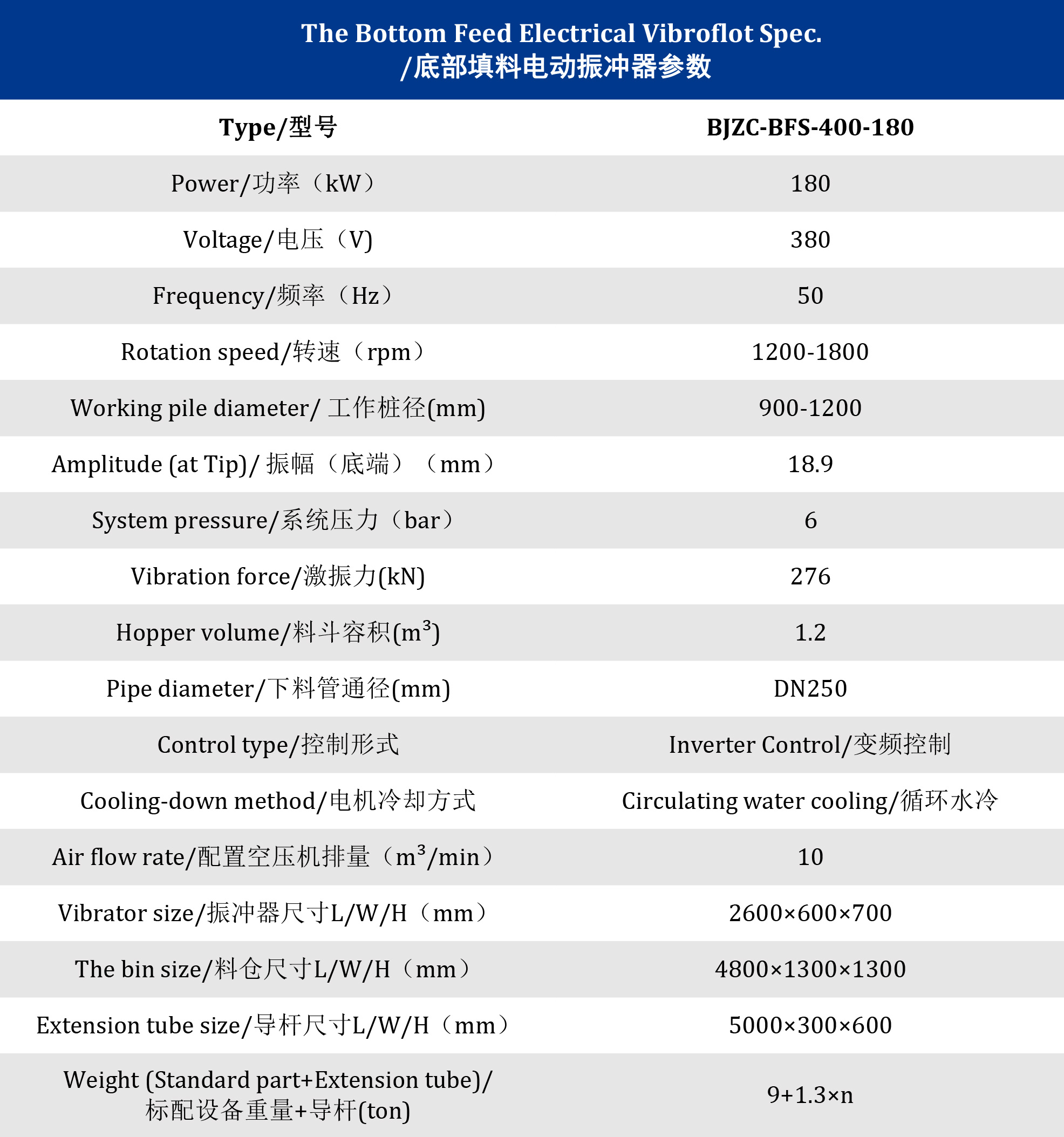

Parameters
