BJV-426 - Top feed vibroflot
Gravel or backfill sand is filled from top of borehole It's wildly commonly used vibroflotation equipment
Product Category：
Share to
Details
Overview
Gravel or backfill sand is filled from top of borehole
It's wildly commonly used vibroflotation equipment
Used for vibro compaction and vibro replacement construction in general condition
Economy and efficient vibro construction method
Features
The vibroflot barrel and the motor housing are made of high strength forged steel
The motor coil adopts high temperature aging film envelop, long service life and good insulation effect
Unique circulating water cooled motor structure, good heat dissipation with high efficiency
Both vibroflot and motor are imported with FAG original bearing
Double-deck vibrating head design with good resistance, easy to replace
Unique bearing oil lubrication, further improve bearing life

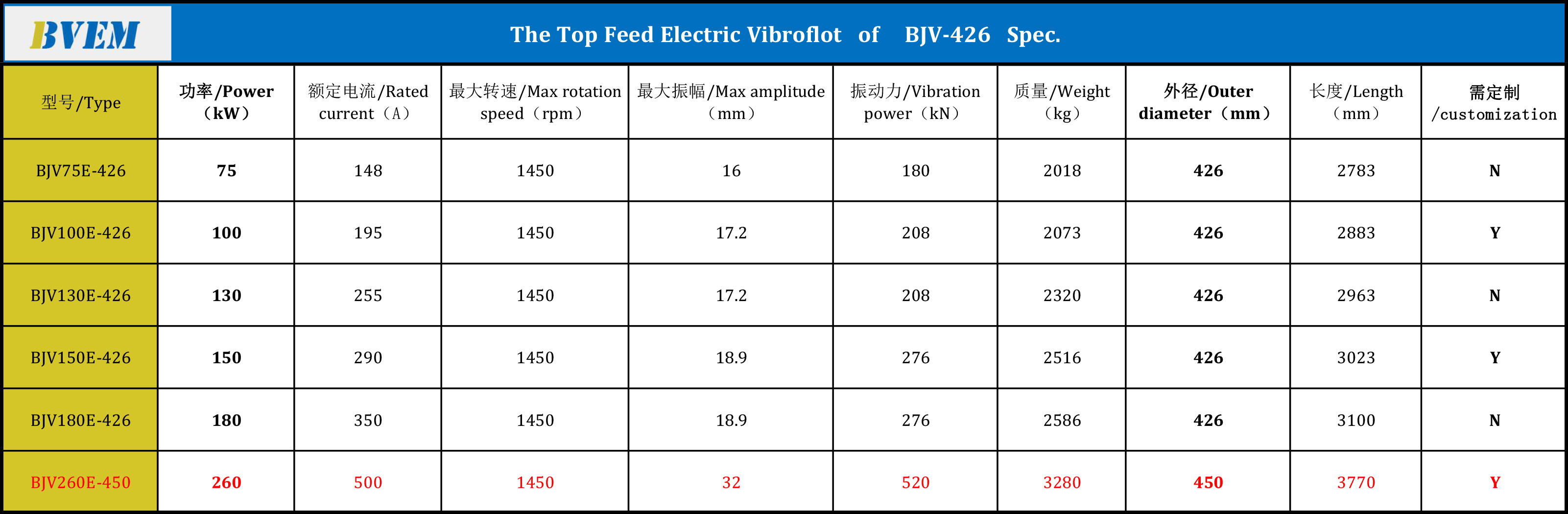

Parameters
